Ragnar Metals and Tubes is a leading Stainless Steel 316Ti Sheets Manufacturer, Stockist and Exporter in India, offering premium quality stainless steel products to customers across UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, Europe, Africa and worldwide markets. With over 20 years of industry experience and ISO Certified quality standards, we have established ourselves as a trusted supplier of stainless steel sheets for critical industrial applications.

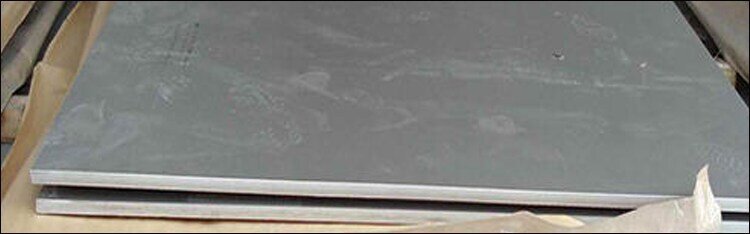

Stainless Steel 316Ti Sheets are titanium-stabilized austenitic stainless steel products developed to provide enhanced resistance against intergranular corrosion and elevated temperature oxidation. The addition of titanium improves structural stability during welding and high-temperature service, making SS 316Ti Sheets a preferred choice for heat exchangers, chemical processing equipment, power plants and marine applications.
SS 316Ti Sheets combine the excellent corrosion resistance of grade 316 stainless steel with improved resistance to sensitization. These sheets perform exceptionally well in aggressive chloride environments, acidic media and elevated temperature conditions where conventional stainless steel grades may fail.
Our Stainless Steel 316Ti Sheets are available in multiple thicknesses, finishes and dimensions to meet the requirements of engineering, fabrication, petrochemical and industrial projects worldwide.
Stainless Steel 316Ti Sheets are titanium-stabilized versions of standard SS 316 stainless steel. The addition of titanium helps prevent chromium carbide precipitation during welding and exposure to elevated temperatures. This stabilization significantly improves resistance to intergranular corrosion and enhances long-term structural integrity.
SS 316Ti belongs to the austenitic stainless steel family and contains chromium, nickel, molybdenum and titanium. The presence of molybdenum improves pitting and crevice corrosion resistance, while titanium provides stability at high temperatures. As a result, 316Ti Sheets are widely used in applications involving welding, thermal cycling and aggressive corrosive environments.
These sheets offer excellent fabrication characteristics, superior weldability and outstanding resistance to oxidation. They are commonly used in industries such as chemical processing, pharmaceutical manufacturing, food processing, marine engineering and power generation.
Due to their excellent combination of strength, corrosion resistance and thermal stability, Stainless Steel 316Ti Sheets remain one of the most reliable materials for demanding industrial applications.
| Specification | Details |
|---|---|
| Grade | Stainless Steel 316Ti |
| UNS Number | S31635 |
| Werkstoff Number | 1.4571 |
| Standard | ASTM A240 / ASME SA240 |
| Thickness | 0.3mm to 100mm |
| Width | 1000mm to 2500mm |
| Length | 2000mm to 12000mm |
| Finish | 2B, BA, No.1, No.4, Hairline, Mirror Finish |
| Element | Composition (%) |
|---|---|
| Carbon (C) | 0.08 Max |
| Chromium (Cr) | 16.0 - 18.0 |
| Nickel (Ni) | 10.0 - 14.0 |
| Molybdenum (Mo) | 2.0 - 3.0 |
| Manganese (Mn) | 2.0 Max |
| Silicon (Si) | 1.0 Max |
| Phosphorus (P) | 0.045 Max |
| Sulfur (S) | 0.03 Max |
| Titanium (Ti) | 5 x (C+N) Min to 0.70 Max |
| Property | Value |
|---|---|
| Tensile Strength | 515 MPa Min |
| Yield Strength | 205 MPa Min |
| Elongation | 40% Min |
| Hardness | 217 HB Max |
| Density | 8.0 g/cm³ |
| Melting Range | 1370°C - 1400°C |
Stainless Steel 316Ti Sheets are manufactured using premium quality raw materials including chromium, nickel, molybdenum and titanium. The alloy is melted in advanced electric arc furnaces and refined through secondary metallurgy processes to achieve precise chemical composition and metallurgical consistency.
The steel is cast into slabs and processed through hot rolling and cold rolling operations. Controlled heat treatment ensures the development of the desired microstructure and mechanical properties. Depending on customer requirements, sheets may undergo annealing, pickling, polishing and surface finishing operations.
Each Stainless Steel 316Ti Sheet undergoes rigorous testing for chemical composition, mechanical properties, dimensional accuracy and surface quality before dispatch. This ensures compliance with international quality standards and customer specifications.
| Property | SS 316Ti | SS 316 |
|---|---|---|
| Titanium Content | Present | Absent |
| Intergranular Corrosion Resistance | Excellent | Good |
| High Temperature Stability | Superior | Moderate |
| Weldability | Excellent | Excellent |
| Heat Resistance | Higher | Good |
SS 316Ti Sheets are preferred for applications involving elevated temperatures and extensive welding because titanium stabilization prevents sensitization and improves long-term corrosion resistance.
316Ti Sheets are titanium-stabilized stainless steel sheets offering enhanced corrosion resistance and high-temperature performance.
316Ti contains titanium, which improves resistance to sensitization and intergranular corrosion.
Yes, SS 316Ti Sheets provide excellent weldability and maintain corrosion resistance after welding.
Chemical, petrochemical, marine, pharmaceutical, food processing and power generation industries.
Yes, they offer excellent resistance to pitting and crevice corrosion in chloride environments.
2B, BA, No.1, No.4, Hairline and Mirror finishes are available.
Yes, custom thicknesses, widths and lengths are available.
Yes, Ragnar Metals and Tubes exports SS 316Ti Sheets globally.
Material Test Certificates, inspection reports and export documentation are provided.
316Ti offers better high-temperature stability and superior resistance to intergranular corrosion.
